Monopole/Dipole

The FCC-2 is a tuned dipole antenna operating within the 65 MHz - 180 MHz frequency range.

A.H. Systems offers a range of half wavelength resonant dipole antennas with operation frequencies between 25 MHz and 3 GHz as the foundation of every compliance testing lab. Ideal for site attenuation measurements, each antenna is manufactured with a balun loss of less than 0.5 dB and a VSWR ratio of less than 1.5:1.

This antenna is a broadband monopole exhibiting exceptional gain in an omni-directional pattern and operates from 20 MHz to 800 MHz. Mechanical stability and isolation from environmental hazards is provided in a sealed dielectric radome that the antenna is mounted in, making it ideal for military applications. Additional features include low VSWR, and the ability to handle 100 W CW power. Rapid vehicle installation is made available with an included magnetic mount. A spring base with the NATO bolt pattern is also available.

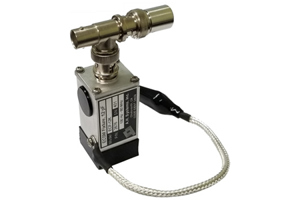

This Equivalent Capacitance Fixture is used for the verification and calibration of the active monopole antennas.

The TV-1 is a tuned dipole antenna from A.H. Systems that operates in the  50 MHz - 220 MHz frequency range.

These end-fed sleeve dipole antennas are truly omni-directional having excellent symmetry with low VSWR. These dipoles are an excellent solution as a reference for antenna gain measurements, wireless testing and chamber reflectivity evaluation. The end-fed connection point allows better performance in symmetry, ideal for the requirement of a truly omni-directional antenna.

The SAS-550-2B Active Monopole Antenna provides superior performance in electric field measurements. This Active Monopole Antenna can drive any receiver with 50 ohm input impedance, and will perform FCC, MIL-STD, and TEMPEST tests. It includes a battery pack and charger for open field test sites that may not have ready access to outlets.

The A.H. Systems T.V. Dipole Set provides an accurate standard for precise FM, VHF, and UHF testing. Each Dipole Set is manufactured per the FCC balun design and is individually calibrated. All sets come contained in a rugged, lightweight storage case which includes 2 baluns, elements, cables, a tape measure and one clamp for tripod mounting.
