Wireless Network Surveillance System Wireless Network Surveillance System

The new wireless network surveillance system from Corry Micronics comprises the RFMS-2x8*8 8 Channel Matrix with a Probe Port and two CMIATT-4CH-200W 100 W Attenuator banks. It is capable of a range of configurations ranging from one port to over 48 ports. The 8-channel RF matrix switch is designed with a probe/test port where the signal analysis occurs. The 8-channel switch is bi-directional enabling testing in both directions. System frequencies can be customized to the end user’s specifications.

75 Ohm Programmable Attenuator: Model 75P-217 75 Ohm Programmable Attenuator: Model 75P-217

JFW’s Model 75P-217 is a solid-state programmable attenuator system featuring an attenuation range of 0 to 95 dB by 1 dB increments and a 5 to 2150 MHz frequency range. With 75 Ohm BNC, F or N female RF connectors, the attenuator has seven individually controlled attenuation steps:  1 dB, 2 dB, 4 dB, 8 dB, 16 dB, 32 dB and 32 dB.

70 dB W-Band Direct Reading Attenuator: STA-60-10-D8 70 dB W-Band Direct Reading Attenuator: STA-60-10-D8

The STA-60-10-D8 from SAGE Millimeter is a high-precision rotary vane attenuator designed for millimeter wave test set applications across the W-band frequency range (75 – 110 GHz). With a large scale calibrated dial indicating direct values of attenuation, this instrument is ideal in waveguide systems where a broad direct reading of attenuation is required.

0.1 To 40 GHz Digital Attenuators: 4209 Series 0.1 To 40 GHz Digital Attenuators: 4209 Series

RFMW, Ltd. introduces the API Weinschel 4209 series of digital attenuators interfaced with popular, high frequency test equipment. The 4209-31.5-1 is equipped with 2.92 mm Female connectors while the 4209-31.5-2 offers 2.4 mm Female connectors. Both the 4209-31.5-1 and 4209-31.5-2 provide 31.5 dB of attenuation range in 0.5 dB steps and operate from 100 MHz to 40 GHz.

High IIP3 10 MHz To 1.5 GHz Voltage-Controlled Variable Attenuator: SKY12239-11 High IIP3 10 MHz To 1.5 GHz Voltage-Controlled Variable Attenuator: SKY12239-11

The new SKY12239-11 is a voltage-controlled variable attenuator from Skyworks’ series of broadband, flat attenuation, high third order intercept point (IIP3) components. With operation over the 10 MHz to 1.5 GHz frequencies, this device is ideal for use as a wide dynamic range, low distortion attenuator in many applications, including those with automatic power leveling/gain control circuits in cellular base stations and point-to-point radio IF chains, and general wireless systems for military communications.

100 Watt Fixed Attenuator With Narrow 2.25″ Diameter: 50FHLB-XXX-100 100 Watt Fixed Attenuator With Narrow 2.25″ Diameter: 50FHLB-XXX-100

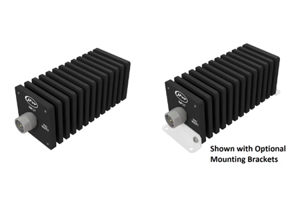

JFW offers the 50FHLB-XXX-100 100 Watt fixed attenuator with 50 Ohm impedance for engineers with restricted dimensions in a rack mount RF system. The heatsink is only 2.25 inches in diameter and 9.08 inches in length for engineers with restricted dimension in a rack mount RF system.

75 Ohm Attenuator Assembly For DOCSIS And CATV Automated RF Testing: Model 75PA-113-XX 75 Ohm Attenuator Assembly For DOCSIS And CATV Automated RF Testing: Model 75PA-113-XX

JFW’s Model 75PA-113-XX is a 19-inch rack mount attenuator system with 1 to 16 75 Ohm solid-state step attenuators. Featuring an attenuation range of 0 to 95 dB by 1 dB increments and 75 Ohms nominal impedance, the system is perfect for DOCSIS and CATV automated RF testing applications in the 5 - 150 MHz range.

Mini Benchtop Programmable Attenuator Assembly Mini Benchtop Programmable Attenuator Assembly

JFW’s 50BA-024-62 is a mini benchtop programmable attenuator assembly designed for mm-wave testing. It is configured with one solid-state programmable attenuator, and it features an attenuation range of 0 to 62 dB in 1 dB increments and 50 Ohms nominal impedance.
