Application Note

Testing Insertion Loss Of PCB Signal Structures With Delta-L 4.0

rstesting

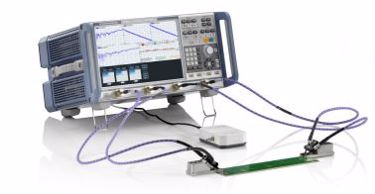

Delta‑L is an algorithm that provides an easy method of removing those effects and calculating the insertion loss per inch of a PCB trace from measurements of test coupons with different lengths. The Delta‑L measurement workflow is fully integrated in the R&S®ZNA, R&S®ZNB, R&S®ZNBT and R&S®ZND vector network analyzers as the R&S®ZNx-K231 option. Download the full application note to learn more.

access the Application Note!
