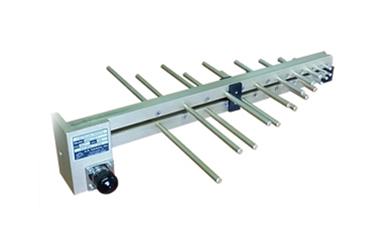

SAS-519-7 Log Periodic Antenna
The A.H. Systems' SAS-519-7 Log Periodic Antenna is extremely lightweight, compact and has been manufactured to ensure maximum gain and low VSWR. Covering a very large frequency range, this antenna is one of the smallest available. Whether testing inside a shielded enclosure or outdoors, this antenna will display efficient performance characteristics through the frequency range of 650 MHz to 7000 MHz.
Next-day, On-time delivery.
Frequency Range: 650 MHz - 7000 MHz
Maximum Continuous Power: 700 Watts
Impedance: 50 Ω
Max Radiated Field: 200 V/m
Connector: N-Type, female
Mounting Base: 1/4 - 20 Thread, female
Physical Dimensions:
Length: 11.9 in. (30.2 cm)
Width: 8.2 in. (20.8 cm)
Weight: 0.7 lb.'s (0.32 kg)
Features
- Frequency Range of 650 MHz to 7000 MHz
- Receive and Transmit
- Individually Calibrated (1, 3 and 10 Meter calibration included, horizontal polarization)
- FCC, MIL-STD, VDE and TEMPEST Testing
- Rugged Construction
- Incredibly Compact
The A.H. Systems' SAS-519-7 Log Periodic Antenna is extremely lightweight, compact and has been manufactured to ensure maximum gain and low VSWR. Covering a very large frequency range, this antenna is one of the smallest available. Whether testing inside a shielded enclosure or outdoors, this antenna will display efficient performance characteristics through the frequency range of 650 MHz to 7000 MHz.
