Log Periodic Antenna: SAS-515

Source: A.H. Systems

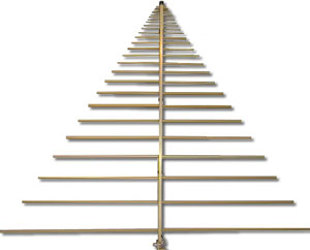

The A.H. Systems' SAS-515 Log Periodic Antenna is lightweight, compact and has been manufactured to ensure maximum gain and low VSWR. Whether testing inside a shielded enclosure or outdoors, this antenna will display efficient performance characteristics through the frequency range of 120 MHz to 4000 MHz.

Request Information

Next-day, On-time delivery.

Features:

  • Frequency Range of 120 MHz to 4000 MHz
  • Receive and Transmit
  • Individually Calibrated (1, 3 and 10 Meter calibration included, horizontal polarization)
  • FCC, MIL-STD, VDE and TEMPEST Testing
  • Rugged Construction
  • Maximum Continuous Power: 1000 Watts
  • Impedance: 50 Ω
  • Max Radiated Field: 200 V/m
  • Connector: N-Type, female
  • Mounting Base: ¼ - 20 Thread, female

Physical Dimensions:

Length: 44.5 in. (113 cm)
Width: 55.9 in. (142 cm)
Weight: 2.8 lb.'s (1.27 kg)
