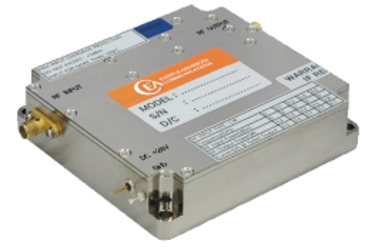

10 - 6000 MHz, 2 Watt Solid State Mid Power Amplifier: MPA1115
Source: Exodus Advanced Communications
The MPA1115 is a versatile, high-power GaN amplifier with a wide bandwidth (10-6000 MHz). It delivers 1W CW output with excellent linearity and low noise.
Key Features:
- Wideband Performance: Suitable for all single-channel modulation standards (AM, FM, PM, digital).
- High Power Output: Delivers 2 watts CW at saturation and 1 watt CW at 1 dB compression point.
- Superior Linearity: Class AB GaN design ensures excellent linearity and efficiency.
- Robust Protection: Built-in protection circuits safeguard against input overloads and excessive load VSWR.
- Compact and Efficient: Low power consumption and small form factor make it ideal for various applications.
Additional Highlights:
- Small signal gain of 33 dB
- Power gain flatness of 6 dB peak-to-peak
- Input return loss of -10 dB
- Excellent intermodulation performance
- Operates from a 28 VDC ±0.2 V supply
