10MHz - 20GHz, Broadband High Gain Distributed Amplifier: AMM2-0020UH

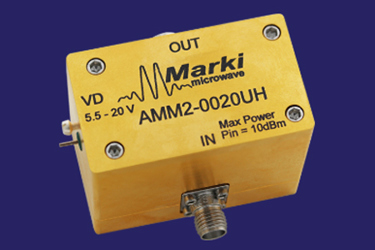

The AMM2-0020UH is a high-performance broadband distributed amplifier designed for operation across a wide 10 MHz to 20 GHz frequency range.
This device is well-suited for applications such as Test and Measurement Equipment, Radar, SATCOM, and Electronic warfare equipment.
Key Performance Features
The amplifier boasts a high 29 dB flat gain response and a low 2.5 dB noise figure (NF) across the 1 GHz to 10 GHz frequency band. Its noise figure remains low, at a typical 3 dB from 10 GHz to 20 GHz. It delivers a saturated output power of 23 dBm and excellent 15 dB typical Output Return Loss.
Operating and Physical Characteristics
