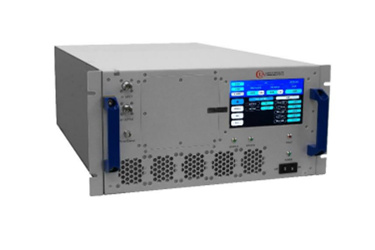

4.0 - 8.0 GHz, 200 Watt Solid State High Power Amplifier: AMP20188
This high-performance X-Band RF power amplifier is engineered for demanding EMI/RFI testing, laboratory environments, and continuous wave or pulsed communication systems.
Delivering robust output performance across the 4.0–8.0 GHz operating range, it provides a minimum of 200 W at saturation, supported by a minimum gain of 53 dB—ensuring ample headroom even when driven at 0 dBm or lower. Its linear Class A/AB architecture enables excellent signal fidelity, making it suitable for precision applications where spectral purity and signal integrity matter.
Designed with reliability and operational flexibility in mind, the system features a compact, rack-mountable form factor ideal for integration into automated test environments or mission-critical communication setups. Built-in protection circuits monitor key operating conditions and safeguard against overloads, excessive input power, and high VSWR conditions, while local LCD controls and remote interfaces support convenient setup and real-time control.
Engineered for rugged, continuous operation, the amplifier incorporates high-efficiency solid-state devices and extensive thermal management to deliver consistent performance from 0 °C to +50 °C. It supports universal AC input (100–240 VAC), ensuring compatibility with varied facility power configurations, and maintains full performance even in high-humidity environments up to 95 % non-condensing.
With wide bandwidth coverage, exceptional gain flatness (≤ 4 dB p-p), low intermodulation (-30 dBc typical), and comprehensive monitoring, this amplifier provides unmatched versatility and reliability. Whether deployed in defense, aerospace labs, compliance testing, or advanced communication research, it offers dependable high-power RF capability backed by industrial-grade durability.
