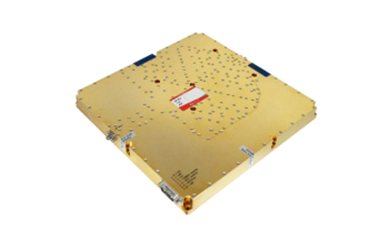

2.0 - 18.0 GHz, 30 Watt Solid State High Power Amplifier: AMP10145
This Class AB linear GaN amplifier delivers wide instantaneous bandwidth and high reliability for single-channel modulation applications, covering 2–18 GHz.
It provides ≥30 W CW power, 45 dB gain, and <6 dB gain flatness, with low harmonics (–30 dBc) and spurious output (–60 dBc). Built-in protections ensure rugged operation under variable loads.
Operating from –20 to +65 °C (storage –40 to +85 °C) and 5–95% non-condensing humidity, the unit is compact (260 × 260 × 27 mm, 4 kg) with forced-air heatsink cooling. SMA-F RF connectors and a 9-pin D-Sub interface support power, current/temperature monitoring, and TTL shutdown. Input power protection is +2 dBm max, and load VSWR is safeguarded up to 5:1. Ideal for demanding communications, radar, and test applications requiring robust, reliable, and high-performance amplification across a broad frequency range.
