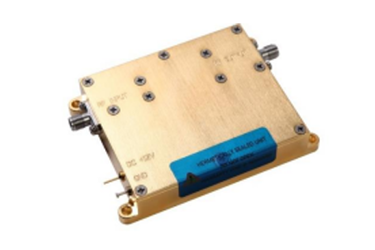

0.5 - 26.5 GHz, 1 Watt Solid State High Power Amplifier: AMP10134
This Class AB GaAs linear amplifier delivers ultra-wide instantaneous bandwidth from 0.5–26.5 GHz, supporting all single-channel modulation standards.
It provides 1 W CW saturated power, 30 dB gain, and 4 dB gain flatness with low harmonics (–20 dBc), –60 dBc spurious output, and 6 dB max noise figure.
Built-in protection circuits safeguard against overdrive and high VSWR (5:1 max). Operating voltage is 12 VDC, with 1.4 A max current. Environmental tolerance ranges from –20 to +70 °C, 5–95% non-condensing humidity. Compact and rugged (140 × 90 × 22 mm) with forced-air heatsink cooling, SMA-F RF connectors, and DC feed-thru interface, this amplifier is ideal for communications, test, and defense applications requiring reliable high-performance broadband amplification.
