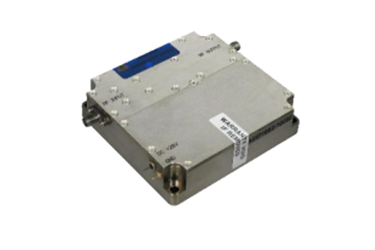

1 - 20 GHz, 4 Watt Solid State High Power Amplifier: AMP1082
Source: Exodus Advanced Communications
The AMP1082 is a solid-state, high-power amplifier designed with a Class AB GaN structure for durability and performance across a wide frequency range.
- Frequency Range: 1 - 20 GHz
- Power Output: 4W min, 5-6W typ (3W @ 18-20 GHz)
- Features: Class AB GaN design, instantaneous ultra-wide bandwidth, rugged with built-in protection circuits
- Gain: 37 dB minimum with 4 dB p-p gain flatness
- Harmonics & Noise: Low distortion (-20 dBc typical), 8 dB max noise figure
- Ideal For: Reliable single-channel modulation in demanding RF applications
- Input Power Protection: +5 dBm max
