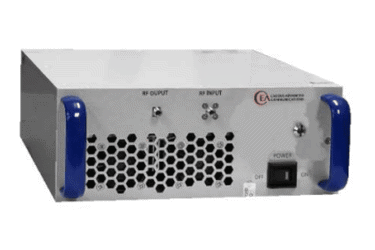

18 - 40 GHz, 27 dBm Solid State Power Amplifier: MPA4003
Source: Exodus Advanced Communications
The MPA4003 is a robust benchtop power amplifier designed to deliver exceptional performance and reliability in demanding applications.
Its Class A/AB linear solid-state design ensures excellent linearity and low distortion, making it ideal for applications requiring high-fidelity amplification.
Key Features:
- Wideband Operation: Operates from 18 to 40 GHz, covering a broad range of frequencies for versatility.
- High Power Output: Delivers a minimum output power of 27 dBm at saturation, providing ample power for various applications.
- Adjustable Gain: Linear gain can be adjusted from 30 dB to 40 dB, offering flexibility to match different system requirements.
- Low Distortion: Ensures minimal distortion for high-quality signal amplification.
- Built-in Protection: Includes protection circuits to safeguard against excessive input power and load mismatches, enhancing reliability.
- Compact and Rugged: Designed for benchtop use with a compact and durable construction.
Applications:
- Radar Systems
- Satellite Communications
- Electronic Warfare
- Test and Measurement Equipment
Specifications:
- Frequency Range: 18-40 GHz
- Output Power: Minimum 27 dBm at saturation
- Gain: Adjustable from 30 dB to 40 dB
- Input Return Loss: -10 dB
- Noise Figure: 6 dB typical, 8 dB maximum
- Power Supply: 100-240 VAC, 50/60 Hz
- Power Consumption: Maximum 50 watts at rated output power
