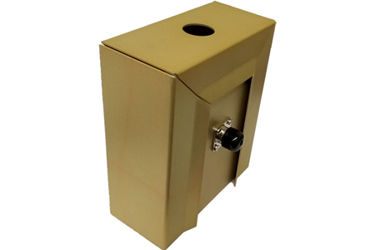

Current Probe Fixture: CPF-633
The CPF-633 Current Probe Fixture calibrates large-diameter probes (2.6" ID) for 20 Hz–500 MHz measurements, using a trough transmission line to enable accurate current measurement via RF voltmeter.
Features
- 20 Hz to 500 MHz
- Fixture for Large Diameter Probes
- Three Year Warranty
The test fixture is composed of an electrically short section of trough transmission line. The short section permits the measurement of current in the center conductor of the line, while the current probe is clamped around the center conductor. The fixture's output terminal is terminated in a 50 ohm receiver, spectrum analyzer or RF voltmeter. A measurement of the voltage developed by this RF voltmeter permits the calculation of current flowing in the center conductor. The trough is large enough to permit the current probe to be clamped around the center conductor, with the outer conductor of the trough extending around the current probe's outer shield.
