Battery Cycle Tool For The R&S NGU401/NGU201/NGM200/NGL200

Your task

Understanding and testing your battery at various points in a charge cycle is important. Monitoring voltage and internal resistance against the charged and discharged battery capacity is a vital data source, which can then be used to create a battery model for future testing.

Rohde & Schwarz solution

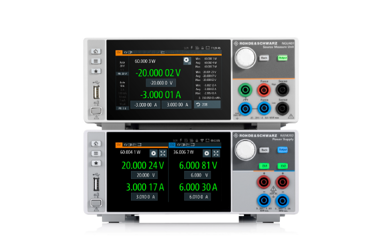

Rohde & Schwarz has a battery data collection and analysis tool that cycles battery samples with two-quadrant DC power supplies from Rohde & Schwarz. The batteries can be repeatedly charged and discharged while collecting information about open-circuit voltage, loaded voltage and internal resistance. Battery charge or discharge data can be used to create battery models for R&S®NGU201/NGM200 battery simulations.
