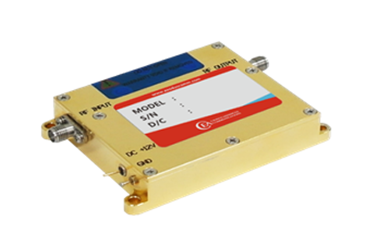

1 - 18 GHz, 1 W+ Solid State Mid Power Amplifier: MPA1081
The MPA1081 is a compact, high-performance solid-state power amplifier designed for broadband applications. It delivers 1W of output power and features excellent linearity and ruggedness.
Its Class A/AB design ensures minimal distortion and low noise figure. The amplifier's small form factor and light weight make it ideal for portable or space-constrained systems. The MPA1081 offers instantaneous ultra-wide bandwidth, making it suitable for all single channel modulation standards. Built-in protection circuits safeguard the amplifier from excessive input power and load mismatches, ensuring high reliability and ruggedness.
Key electrical specifications include an operating frequency range of 1.0 to 18.0 GHz, a power output of 1 Watt CW, and a small signal gain of 30 dB. The amplifier operates from a 12 VDC supply and consumes a maximum of 0.9 Amps at rated output power. The MPA1081 is designed to meet demanding environmental requirements, including a wide operating temperature range and high humidity tolerance. Its rugged construction and MIL Spec availability make it suitable for both commercial and military applications.
