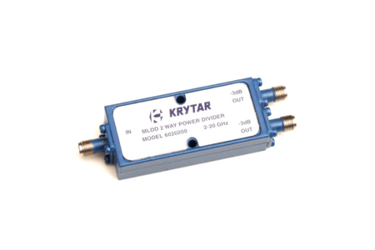

2-Way Power Dividers 6020200

Leveraging a proprietary design, this patented device represents a new class of directional power dividers engineered for next-generation wireless, electronic warfare (EW), and test and measurement applications.

Designed for compactness and efficiency, the divider comes in a lightweight package measuring just 2.25 x 1.00 x 0.52 inches and weighing only 2 ounces. It is equipped with 3.5-mm female coaxial connectors and supports an input power rating of up to 10 watts with 2:1 load VSWRs. The Model 6020200 delivers outstanding electrical performance, including insertion loss below 1.2 dB, maximum amplitude tracking of ±0.4 dB, and phase tracking within ±8 degrees across the entire frequency range. It also boasts a maximum VSWR of 1.50 and isolation of 19.0 dB.

Notably, the MLDD technology allows for superior isolation and low-loss signal division while maintaining tight performance tolerances. These features make the 6020200 an excellent fit for broadband switch matrices and military-grade EW systems where precision and reliability are paramount.

KRYTAR offers the option to customize the device with tighter amplitude and phase tracking upon request and provides engineering services for tailored designs that meet specific performance or packaging requirements. With the broadest frequency coverage in its class and excellent electrical characteristics, the 6020200 establishes KRYTAR as a leading provider of innovative RF/microwave components for high-frequency applications.
