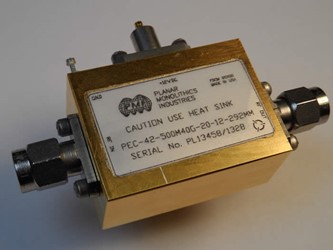

500 MHz – 40 GHz Ultra-Wideband Low Noise Amplifier: Model PEC-42-500M40G-20-12-292MM

Source: Planar Monolithics Industries, Inc.
500 MHz – 40 GHz Ultra-Wideband Low Noise Amplifier: Model PEC-42-500M40G-20-12-292MM

Planar Monolithics industries (PMI) offers the Model PEC-42-500M40G-20-12-292MM ultra-wideband low noise amplifier (LNA) designed for applications operating in the 500 MHz to 40 GHz frequency range. The LNA typically provides 42 dB of gain with a noise figure of 5.5 dB at 20 GHz.

The amplifier model features an OP1dB of +19 dBm (1.0 to 18.0 GHz) and +17 dBm (18.0 to 40.0 GHz). The operating DC supply is 450 mA at +12 to +15 VDC with a maximum input power rating of +17 dBm CW. The LNA’s packaging measures 1.37” x 1.0” x 0.6” with 2.92 mm male connectors.

For more information on the Model PEC-42-500M40G-20-12-292MM, download the technical datasheet.
