S-Band Directional Couplers From RFMW Handle 50W
RFMW, Ltd. announces design and sales support for SMA connectored Directional Couplers from P1dB operating from 2 to 4 GHz. The P1CP-SAF-0204G series are available in 10dB (P1CP-SAF-0204G10W-10), 20dB (P1CP-SAF-0204G50W-20) and 30dB (P1CP-SAF-0204G50W-30) coupling factors. The P1CP-SAF-0204G10W-10 will handle input power levels as high as 10 Watts while the P1CP-SAF-0204G50W-20 and P1CP-SAF-0204G50W-30 handle up to 50 Watts for multiple applications. Minimum directivity for these P1dB couplers is 22dB and VSWR is specified at 1.15:1. Overall flatness is rated at < +/- 0.75dB.

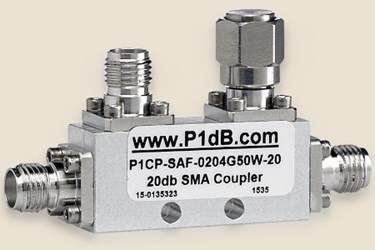

P1dB S-band Directional Couplers
|
Coupler Part Number |
Coupling Value (dB) |
|
P1CP-SAF-0204G10W-10 |
10 |
|
P1CP-SAF-0204G50W-20 |
20 |
|
P1CP-SAF-0204G50W-30 |
30 |
About RFMW, Ltd.:
RFMW Ltd. is a specialty electronics Distribution Company focused exclusively on serving customers that require RF and microwave components and semiconductors, as well as component engineering support. The company continues to expand its list of products from selective suppliers with RF/microwave expertise. RFMW deploys a highly experienced, skilled and technically competent team to assist customers with component selection and fulfillment. For more information, visit www.rfmw.com.
Source: RFMW, Ltd.
