PSX10-R518-53-1: SP10T Absorptive Pin Switch Electrical Specifications:
Source: dB Control

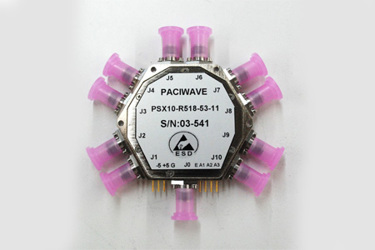

dB Control’s Single pole ten throws, SP10T, PIN Diode RF Switches route radio frequency (RF) signals to one of ten signal paths. These switches are essential in applications requiring the selection of multiple signal paths in communications systems, radar systems, or test equipment.
- Frequency: 0.5 GHz TO 18.0 GHz
- Operating Temperature: -40C TO +85C
- I. L. (25C): 2.0 dB MAX - 0.5 TO 2 GHz
- 4.6 dB MAX - 2 TO 6 GHz
- 5.7 dB MAX - 6 TO 18 GHz
- Isolation: 60 dB MIN.
- VSWR: (25C) 2:1 ON/OFF, (ON ONLY - J0)
- Control: LOGIC 4 BIT BCD, 5V TTL STD.
- SW. Speed: 250 NSEC MAX.
- Power Handling: +25 dBm MINIMUM
- DC Supply: +5V@ 280mA, -5V @ 95mA
- RoHS Compliant: 2011/65/EU & 2015/863/EU
