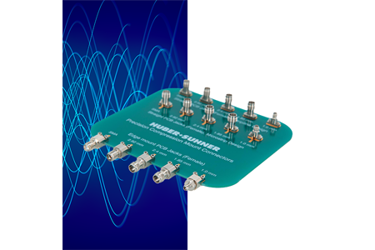

Precision Compression Mount Connectors
Discover an all-new portfolio of precision coax-to-PCB compression mount connectors designed to serve critical applications, including high-speed digital evaluation and internal system connectivity.
These connectors are particularly appealing to PCB designers, lab managers, and SI engineers for their solderless advantage.
The key benefit of the compression mount design is the elimination of uncontrollable solder joints, which introduce inherent variability into measurements. By bypassing the need for soldering, engineers can quickly and easily mount a test interface onto the Device Under Test (DUT) PCB for immediate, reliable measurements without any operational processing delays.
The core features of the new portfolio include:
-
Precision Testing: Availability of common mm-standard interfaces supports precision testing up to an industry-leading 110 GHz frequency.
-
Reusable Design: The connectors can be redeployed across multiple programs, offering a significant reduction in overall testing costs.
-
Small Form Factor: The design allows for close positioning of connectors, saving expensive board material.
-
Ease of Installation: Straight and edge-mount designs allow for flexible, appropriate placement.
HUBER+SUHNER leverages its expertise in proprietary interfaces (like MXPM and MMPX) and combines it with these new mm-standard compression mounts and professional simulation services to offer a one-stop solution for high-frequency coax-to-PCB connectivity.
