Oscilloscope, Protocol, And Digitizer Products Line Card

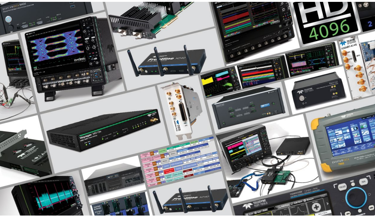

Teledyne LeCroy offers a comprehensive portfolio of oscilloscopes, protocol analyzers, digitizers, and test instruments for electronics development, validation, and troubleshooting. The oscilloscope range covers platforms from ultra-high bandwidth (up to 65 GHz) and high resolution (up to 12 bits) mainframes like the WaveMaster, LabMaster, and WavePro HD series, to versatile benchtop and portable units (WaveRunner, HDO, WaveSurfer, and T3DSO series). Advanced models feature multi-channel acquisition, deep memory (up to 8 Gpts), fast sample rates (up to 320 GS/s), sophisticated mixed-signal options, and a rich suite of serial protocol decoding/triggering for standards including PCIe, USB, Ethernet, CAN, MIPI, and more. Software enhances functionality via cross-domain analysis, jitter/noise tools, compliance testing, spectrum/vector analysis, and motor drive/three-phase power tools.

Protocol test solutions cover PCI Express, NVMe, CXL, SAS/SATA, Ethernet (up to 800Gb PAM4), Fibre Channel, USB, MIPI, Bluetooth, Wi-Fi, RS-232/485, HDMI, DisplayPort, and SSD test appliances (OakGate). A diverse probe portfolio supports high-voltage, high-bandwidth, current, differential, Rogowski, and TDR applications.

The modular digitizer line (from Teledyne SP Devices) features high speed (up to 14 bits, 10 GSPS), multi-channel streaming, and open FPGA real-time processing, serving markets like SS-OCT, LiDAR, RF, and time-of-flight. Additional test and measurement tools include arbitrary waveform/function generators, multimeters, power meters/loads, spectrum/LCR meters, TDR modules, and data acquisition units.
