Octoplexer For C-UAS Applications
This RF octoplexer combines eight frequency-selective channels into one antenna port, supporting multiband counter-drone systems with low insertion loss and high channel isolation.

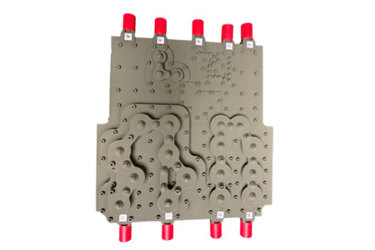

With a legacy of supporting RF multiplexers for common data links and electronic warfare applications, Mtron introduces an RF octoplexer integrating eight frequency-selective RF channels spanning 430MHz to 5.825GHz through a common antenna port. Leveraging lumped-element, cavity, and stripline filter topologies, Mtron delivers flexible RF multiplexing solutions tailored to demanding multiband C-UAS system requirements.
Key Features:
- Frequency Coverage: 430MHz to 5.825GHz
- Insertion loss: <0.8dB
- Channel to Channel isolation:40dBc
- Size: 11.65” x 9.63” x 2.35” max.
- Power handling: 40 W per channel, with all eight channels operating simultaneously.
Applications:
The octoplexer supports multiband RF architectures for C-UAS applications, including drone signal detection, communications monitoring, direction-finding systems, and electronic warfare. By combining eight frequency-selective RF channels through a common antenna port, it enables the reception or transmission of signals across multiple designated frequency bands within a single integrated assembly. Its low insertion loss and channel isolation help preserve signal integrity and reduce unwanted interference between RF paths, while 40 W power handling per channel supports demanding multichannel RF applications. These capabilities make the octoplexer well suited for integration into fixed-site, mobile, and platform-based counter-drone systems.
About Mtron:
Mtron designs and manufactures in our USA-based vertically integrated facilities where the products and solutions are developed and fully tested in-house to our customer’s rigorous requirements. Mtron is an ISO 9001:2015 and AS9100 Rev. D certified organization.
