High-Performance RF Microwave Cable Assemblies: Nitrowave Series
Source: Samtec, Inc.
Nitrowave RF coaxial cables offer improved stability with flexure over time. The coaxial structure is designed to meet the demands of aerospace, defense, datacom, and many other growing markets.
Performance is optimized at frequencies that go beyond traditional industry targets to support emerging applications.

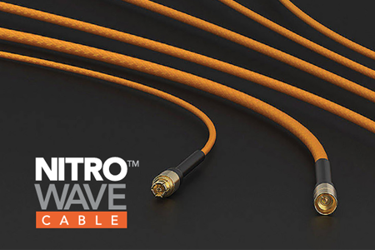

High-Performance Microwave Cable Assemblies
- Nitrowave™ cable technology in distinctive Samtec orange
- Phase and amplitude stable with flexure
- Consistent contact resistance between layers
- Lower density dielectric minimizes loss
- State-of-the-art shielding techniques and interlayer
- Silver plating enhancements mitigate corrosion potential
- Electrical performance optimized at next gen frequencies (GHz): 18, 32, 43.5, 71, 95, 110
- Designed to meet increased demands placed on aerospace, defense, datacom, computer/semiconductor and instrumentation markets
- Mechanical and environmental robustness
- Phase vs. Bending = < 0.2° x F (GHz)
- VSWR = 1.4:1 @ 43.5 GHz (LL043 Series)
