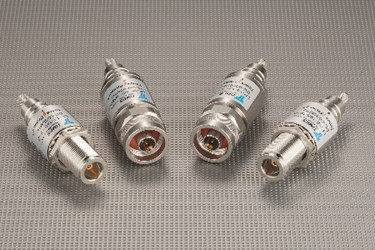

New Times-Protect Protector-Connectors Introduced By Times Microwave Systems

Times has added to its popular line of Times-Protect protector-connectors with the new LP-18-240 and LP-18-195 in-line broadband DC pass surge protector series to augment the existing LP-18-400 series. All designs incorporate state-of-the-art lightning protection circuitry and the EZ Advantage -X series crimp style connector interface unit. This combination allowing the in-line surge protector to be attached directly to the LMR cable eliminates the cable connector needed when using conventional lightning protectors. The LP-18 series protectors exhibit outstanding RF performance over the entire frequency spectrum from DC through 6000 MHz and the elimination of the extra connector further reduces return loss, insertion loss and lowers cost. In addition, the fully weatherized housing meets the IP-67 standard for outdoor as well as indoor installation.

• Eliminates the Need for Separate Cable Connector
• Attaches Directly to LMR-400, LMR-240 and LMR-195 Cables
• Uses EZ-400-X, EZ-240-X or EZ-195-X (No Braid Trim) Connector Interface
• DC Pass Multi-Strike Broadband Bidirectional Design
• Fully Weatherized Housing
• Solid Brass Construction
• White Bronze Plated for Durability and Long Life

LP-18-400-N Series:
• LP-18-400-NF-X (150W)
N Female connector on one side and EZ-400-X crimp style interface on the other side – bidirectional

• LP-18-400-NMH-X (150W)
N Male connector on one side and EZ-400-X crimp style interface on the other side – bidirectional

LP-18-240-N Series:
• LP-18-240-NF-X (150W)
N Female connector on one side and EZ-240-X crimp style interface on the other side - bidirectional

• LP-18-240-NMH-X (150W)
N Male connector on one side and EZ-240-X crimp style interface on the other side – bidirectional

LP-18-195-N Series:
• LP-18-195-NF-X (150W)
N Female connector on one side and EZ-195-X crimp style interface on the other side - bidirectional

• LP-18-195-NMH-X (150W)
N Male connector on one side and EZ-195-X crimp style interface on the other side – bidirectional

The LP-18 series protectors install easily onto LMR® cable using standard CST prep tools and crimp tools.

The list price for each item is $42.00.

About Times Microwave Systems
Times Microwave Systems has over 60 years experience in designing innovative, high-reliability, coaxial cables and assemblies for demanding interconnection problems. An engineering oriented organization, the company specializes in the design and manufacture of high performance flexible and semi-rigid coaxial cable, connectors, and cable assemblies for RF transmission from HF through microwave frequencies as well as surge arrestors for the protection of RF equipment.
