New Connectors For TFT-402 Low PIM Jumpers For DAS Applications From Times Microwave Systems
Times Microwave Systems has introduced eight new factory installable connectors for TFT-402 jumpers. These high quality connectors attach via soldering of the center pin and induction soldering to the cable outer conductor and provide excellent VSWR performance and reliable PIM performance better than -155 dBc.
| Part Number | Stock Code | Description |
| TC-402-SM-RA-LP | 3190-3005 | SMA-Male (plug), right angle, solder-on-pin, solder body |
| TC-402-NF-LP | 3190-3004 | N-Female (jack), solder-on-pin, solder body |
| TC-402-NF-BH-LP | 3190-3013 | N-Female (jack), Bulkhead, solder-on-pin, solder body |
| TC-402-716M-RA-LP | 3190-2967 | 7/16-Male (Plug), right angle, solder-on-pin, solder body |
| TC-402-716F-LP | 3190-3003 | 7/16-Female (Jack), right angle, solder-on-pin, solder body |
| TC-402-4195M-LP | 3190-3009 | 4.1/9.5 mini DIN Male solder-on-pin, solder body |
| TC-402-QM-LP | 3190-2984 | QMA-Male (Plug), solder-on-pin, solder body |
| TC-402-QM-RA-LP | 3190-3022 | QMA-Male (Plug), right angle, solder-on-pin, solder body |

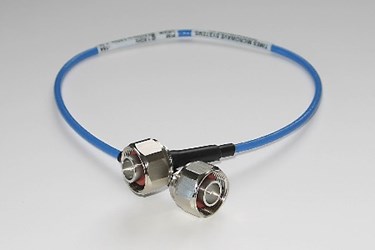

TFT-402 is an ultra-flexible 0.160” jumper cable meeting the requirements of UL 910 for plenum applications. TFT-402 jumper cables are suitable for in-building jumpers and interconnects up to 6.0 GHz and are UL listed and printed as well as 100% tested for static and dynamic PIM.
About Times Microwave Systems
Times Microwave Systems has over 60 years experience in designing innovative, high-reliability, coaxial cables and assemblies for demanding interconnection problems. An engineering oriented organization, the company specializes in the design and manufacture of high performance flexible and semi-rigid coaxial cable, connectors, and cable assemblies for RF transmission from HF through microwave frequencies as well as surge arrestors for the protection of RF equipment.
Source: Times Microwave Systems
