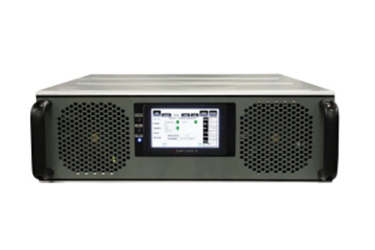

2900-3500 MHz, 1000 Watt High Power RF Amplifier Systems: SKU 2239
Source: Empower RF Systems, Inc.
Unlock top-tier pulse power performance with the Empower RF Model 2239, a 1kW peak pulsed RF amplifier built for demanding applications in the 2.9-3.5 GHz frequency range.
Key Features:
- 1kW Peak Pulsed Power: Delivers up to 1000 Watts with a 65 dB gain, supporting pulse widths up to 500 µsec and duty cycles up to 20%.
- Fast TTL Gate Input: Optional TTL gate input for complete output shutdown between pulses, maximizing efficiency.
- Compact 3U Rack Design: Space-saving form factor for easy integration into Magnetron, IOT, Klystron, and TWT systems.
- GaN on SiC Technology: High-performance GaN on SiC devices in a multistage class AB configuration for reliability and efficiency.
- Built-In Self-Protection: Self-monitoring to guard against open/short conditions, with VSWR tolerance up to 3:1.
- Local & Remote Control: Standard local and remote monitoring/control for enhanced usability and integration flexibility.
Engineered to handle high-frequency, high-power applications, the Model 2239 offers robust, reliable performance with advanced features that protect your investment. Ideal for any high-demand RF environment.
Optimize your RF power setup with the reliable and compact Empower RF Model 2239.
