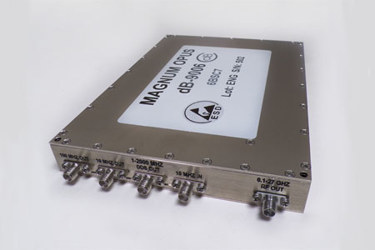

Magnum Opus Microwave Synthesizer: dB-9006
Source: dB Control
The dB Control dB-9006 Magnum Opus instrument-grade synthesized signal source tunes from 100 MHz to 27 GHz with best-in-class phase noise performance.
This microwave synthesizer supports three interfaces, including 4-wire SPI and two SCPI interfaces using either RS-232 or USB. Tuning speed is under 50 uS using the SPI port. A secondary output tunes from 1-2,000 MHz. Both outputs provide the standard 1 Hz resolution and also support a 1 mHz high-resolution mode.
Features
- Wide frequency range (100 MHz to 27GHz, with 1 Hz resolution mode)
- Best-in-Class instrumentation-grade phase noise performance
- -80 dBc non-harmonic spur performance
- Fundamental VCOs, no sub-harmonics
- Fast tuning (<50 uS)
- Auxillary 1-2,000 MHz DDS output
- Three control interfaces (USB, RS-232, 4-wire SPI)
Applications
- Communications Intelligence (COMMINT)
- Electronic Countermeasures (ECM)
- Low Jitter ADC & DAC Clocks
- Radars
- Satellite Links
- Test and Measurementation
