KYOCERA's New Temperature-Compensated Crystal Oscillator Offers Industry's Lowest Phase Noise For 5G, Wi-Fi
Improves connection performance of smartphones and network equipment
Kyocera Corporation (President: Hideo Tanimoto) today unveiled a compact temperature-compensated crystal oscillator (TCXO) offering the industry's lowest phase noise*. Samples of Kyocera's KT1612 Series and KT2016 Series TCXOs are now available worldwide, with mass production planned to start in March 2020.
Compact Temperature-Compensated Crystal Oscillator (TCXO) |
||
Series |
KT1612 Series |
KT2016 Series |
Dimension |
1.65×1.25×0.55mm |
2.0×1.6×0.8mm |
Applications |
Smartphones, Network devices |
|
Production facility |
Yamagata Higashine Plant |
|
Start of mass production |
March 2020 (planned) |
Increased communication speeds and data capacities required for new 5G and Wi-Fi technologies have brought about a shift toward multilevel modulation systems that send multiple signals to a single section of a single wavelength. However, since noise and frequency fluctuations can produce data errors, circuit designers seek compact TCXOs that can provide higher frequency stability with less degradation. In these applications, a TCXO has two important performance indices:
- Phase noise: Amplitude and phase fluctuations due to inherent noise in the device; and
- Phase jitter: Shifts and fluctuations in the time domain of the waveform
Kyocera's compact TCXO delivers an industry-leading, ultra-low phase noise of -168 dBc/Hz at 100kHz offset. In addition, it reduces phase jitter to 68 fs from 12kHz to 5MHz, resulting in greatly improved communication quality. These new benchmark performance levels were achieved using high-Q-value, high-quality, synthetic crystals grown at Kyocera's Yamagata Higashine Plant, combined with a crystal oscillator optimized by plasma chemical vaporization machining (CVM), an ultra-high-precision processing technology, and an oscillator circuit that suppresses noise.
Kyocera will continue to enhance its TCXO line with improved phase-noise characteristics to support better performance in smartphones and network equipment.
Specifications and temperature characteristics
Series |
KT1612 |
KT2016 |
Dimension |
1.65×1.25×0.55mm |
2.0×1.6×0.8mm |
Operating temperature range |
-30-+85℃ |
-30-+85℃ |
Electrical characteristics
Output frequency range |
26MHz-52MHz |
Frequency tolerance vs. temperature |
±0.5×10-6 |
Frequency aging |
±1.0×10-6/year 25℃ (Max.) |
Supply voltage |
1.68-3.63V |
Output level (at maximum load) |
0.8Vp-p(Min.) |
Consumption Current |
2.5mA (Max.) / 26MHz |

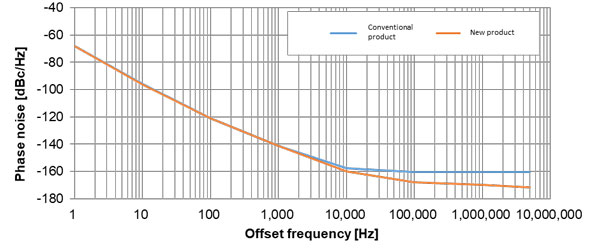

<Sample data of phase noise characteristics>
Condition: Nominal frequency at 26MHz, temperature at +25℃
* Based on research by Kyocera. (as of October 31, 2019)
