KRYTAR Offers Compact, Ultra-Broadband 3 To 40 GHz, MLDD 4-Way Power Divider

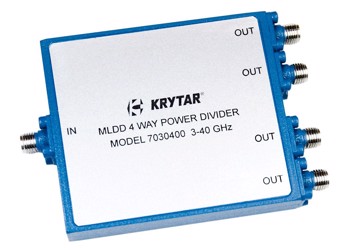

KRYTAR, Inc., a leader in the design and production of ultra-broadband microwave components and test equipment, offers RF/Microwave engineers Model 7030400 a 4-way power divider offering high performance over the ultra-broadband frequency range of 3.0 to 40.0 GHz in a compact package.
KRYTAR has used its proprietary design technology to produce a wide assortment of matched-line directional dividers (MLDD) with ultra-high performance features. Offering the widest frequency coverage in a single package on the market this 4-way power divider lends itself to emerging wireless ultra-broadband designs and many test and measurement applications. The 4-way power divider can also be manufactured to meet military specifications.
KRYTAR’s technological advances provide excellent operating performance for this new 4-way power divider. Model 7030400 covers the frequency range from 3.0 to 40.0 GHz with >13 dB Isolation and ±0.5 dB Amplitude Tracking. The 4-way divider exhibits Insertion Loss of <3.0 dB from 3 to 32 GHz and <3.6 dB from 32 to 40 GHz. Maximum Input VSWR is 1.9 from 3 to 32 GHz and 2.5 from 32 to 40 GHz. Maximum Output VSWR is 1.70 from 3 to 32 GHz and 2.0 from 32 to 40 GHz. Phase Tracking is ±11 degrees from 3 to 32 GHz and ±15 degrees from 32 to 40 GHz.
The power divider is a compact package measuring just 2.64 inches (L) x 2.30 inches (W) x 0.40 inches (H), weighs only 4.1-ounces, and comes with standard 2.4-mm coaxial female connectors. Model 7030400K includes 2.92-mm “K” female connectors. KRYTAR also offers complete engineering services for custom designs that meet or exceed critical performance and/or packaging specifications.
KRYTAR microwave components are manufactured in full compliance with the EU RoHS-6 Environmental Requirements.
A data sheet with specifications and package outline drawing is available via KRYTAR’s Web site. Additional information can be obtained by contacting KRYTAR, Inc., 1288 Anvilwood Avenue, Sunnyvale, CA 94089. Tel: +1-408-734-5999, Fax: +1-408-734-3017, Toll Free: +1-877-734-5999, e-mail: sales@krytar.com, Web: www.krytar.com
KRYTAR, Inc., founded in 1975, is a privately-owned corporation specializing in the design and manufacture of ultra broadband microwave components and test equipment for both commercial and military applications. The KRYTAR product line includes directional couplers and detectors, hybrids, power dividers/combiners, terminations, coaxial adapters and a power meter and power sensors.
