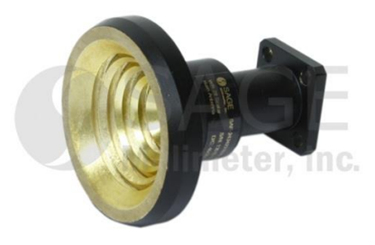

24 to 42 GHz Ka Band Scalar Feed Horn Antenna: SAF-2434231535-358-X1

Source: Eravant (Formerly SAGE Millimeter, Inc.)

SAGE Millimeter offers the SAF-2434231535-358-X1 Ka-band scalar feed horn antenna designed to operate in the 24 to 42 GHz frequency range for use in Gaussian optical antennas, Cassegrian antennas, rapid system setups, and engineering setups. The antenna features a 15 dB nominal gain, 25 degree half typical power beamwidth, and nominal side lobe levels of -25 dB or lower.

The scalar feed horn antenna includes a 0.358” diameter circular waveguide with UG381/U-M flange supporting both linear and circular polarized waveforms.

Key SAF-2434231535-358-X1 features include:

  • Ultra-broadband operation
  • Low side lobe level
  • High return loss
  • Linear and circular polarization

For more information on the SAF-2434231535-358-X1 scalar feed horn antenna, download the datasheet.
