How Spectrum Analyzers Empower EW and SIGINT

By John Oncea, Editor

Spectrum analyzers are crucial in electronic warfare and signals intelligence, enabling detection, interception, and analysis of enemy signals to protect friendly communications and disrupt adversaries.

Spectrum analyzers have played a critical role in the evolution and application of electronic warfare (EW) and signals intelligence (SIGINT), where the ability to detect, analyze, and exploit electromagnetic signals defines command over increasingly contested and congested electromagnetic battlefields.

Originally developed as tools for measuring frequency components of electrical signals, spectrum analyzers have matured alongside other RF technologies, becoming essential instruments for modern military operations. They enable comprehensive observation and actionable analysis of the electromagnetic environment, empowering commanders to make immediate and strategically informed decisions across defense and intelligence domains.

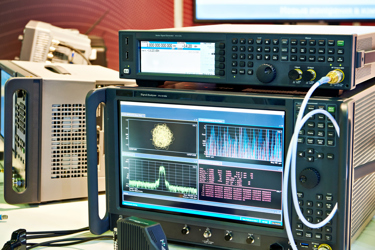

What Is A Spectrum Analyzer

The history of spectrum analyzers begins in the mid-20th century with the development of analog instruments designed to graphically display signal amplitude as a function of frequency. According to the Perkins Electro-Acoustic Research Lab, these early swept-tuned analyzers laid the groundwork for radio frequency measurement, enabling engineers to visualize and understand RF emissions.

However, their performance was constrained by limited bandwidth, resolution, and relatively slow sweep speeds. Operating largely on superheterodyne principles akin to radio receivers, they scanned frequency spans sequentially, which meant transient or pulsed signals could be missed if not present during the sweep. They typically displayed frequency on a linear scale along the x-axis, with amplitude represented logarithmically on the y-axis to accommodate signals of varying strength, according to Rohde & Schwarz.

The transition to digital signal processing in the late 20th century brought a transformative leap with the introduction of Fast Fourier Transform (FFT)-based analyzers. Digital FFT processing enabled much faster spectrum analysis by converting time-domain signals into frequency-domain representations in parallel, broadening instantaneous bandwidth and allowing for the reliable capture of transient, pulsed, and frequency-agile signals that were elusive to analog swept systems.

This new capability was vital for modern communications, radar, and electronic warfare (EW) systems that rely on detecting complex modulated signals and short-lived transmission events. Alongside amplitude, advanced analyzers also gained the ability to measure signal phase, perform demodulation, and export digital data for post-processing to assess noise, gain, and adjacent channel power, among other parameters, according to NIST.

In the late 1990s, enhanced digital signal processing hardware enabled the advent of real-time spectrum analyzers (RTSAs). These instruments combine FFT speed with continuous signal capture, virtually eliminating measurement dead time and ensuring no signals are missed. Modern hybrid spectrum analyzers commonly integrate swept-tuned front ends with continuous real-time capture modes, greatly enhancing diagnostic and detection capabilities critical for EW and SIGINT applications.

The RF frequency coverage of spectrum analyzers today can extend from as low as a few hertz to upwards of 85 GHz with built-in preselection, and even higher frequencies are accessible using external mixers. The evolution has resulted in versatile and powerful tools essential for both routine RF tests and advanced spectrum monitoring tasks.

Spectrum Analyzers And Electronic Warfare

Within the domain of EW, spectrum analyzers are indispensable for sensing and managing the electromagnetic spectrum. According to the Air Force Research Laboratory (AFRL), EW fundamentally revolves around gaining and maintaining spectrum dominance – intercepting hostile transmissions, protecting friendly signals, and disrupting enemy electronic assets.

Spectrum analyzers form the cornerstone of these efforts by providing detailed frequency domain insights that reveal the presence of enemy emitters, the nature of their signals, and vulnerabilities in hostile systems. By continuously monitoring the electromagnetic environment, EW operators can identify new and unexpected signals, classify them by modulation type or emitter characteristics, and develop countermeasures to neutralize adverse effects.

The utility of spectrum analyzers in EW extends beyond mere detection, according to the U.S. Army. Analysis of waveform parameters such as frequency, pulse width, and spectral signatures aids in tailoring directed energy, electronic attack, and jamming responses. These responses are designed to degrade or deceive enemy sensors and communication channels, preventing them from gaining tactical advantage.

Equally critical is the role of spectrum analyzers in electronic protection, where continuous monitoring guards friendly communication links against jamming and interception. By understanding the spectral footprint of both friendly and adversary signals in real-time, commanders can adjust frequency hopping patterns, encryption robustness, and signal power to ensure operational security, according to Defense Scoop.

The electromagnetic environment in modern conflict zones resembles a dense and dynamic “spectrum swamp,” populated by a myriad of civilian, military, and adversarial signals. Spectrum analyzers assist in disentangling this congestion, allowing military forces to spot hostile transmissions hidden amid routine activity. These capabilities are essential for interference mitigation, where pinpointing unintentional or deliberate sources of disruption helps maintain communications reliability – a critical factor in coordinated multi-domain operations, according to the U.S. Department of Defense.

Spectrum Analyzers And Signals Intelligence

Turning to SIGINT, spectrum analyzers underpin the interception and exploitation of electronic emissions generated by adversaries. As SIGINT focuses on intercepting both communication transmissions and non-communication electronic signals (ELINT), spectrum analyzers facilitate broadband monitoring and fine-grained signal resolution necessary to capture fleeting or frequency-hopping emissions.

According to the U.S. Air Force, the instruments' capacity for real-time analysis enables the identification and extraction of signal features vital for subsequent demodulation, decoding, and cryptanalysis.

Detailed spectral data from these analyzers is fed into advanced signal processing algorithms and machine learning models, thereby accelerating the recognition of known emitter types and the discovery of novel transmissions. According to the U.S. Naval Research Laboratory, this intelligence provides commanders with critical insight into enemy force dispositions, communication patterns, command structures, and electronic order of battle. The timely, accurate signal analysis afforded by spectrum analyzers elevates SIGINT from passive collection to an active enabler of both tactical maneuvers and strategic decision-making.

Recent technological advances have further enhanced the capabilities of spectrum analyzers utilized in EW and SIGINT. Current generation devices integrate multichannel inputs and cross-correlation techniques to simultaneously analyze multiple signals and spatially discriminate between them. Portable, low-power, and rugged analyzers extend spectrum awareness to forward-deployed units, where autonomous operation and remote connectivity allow persistent monitoring without risking operator exposure, according to the U.S. Naval Institute.

The integration of software-defined radio techniques with spectrum analysis provides unprecedented flexibility, allowing rapid reconfiguration to adapt to emerging spectral threats. This agility is crucial in environments where adversaries employ sophisticated electronic countermeasures and frequency hopping techniques designed to evade detection. Moreover, real-time spectrum analysis coupled with geographic signal mapping offers precise emitter location, which is invaluable for targeting in electronic attack missions and corroborating intelligence from other sources.

What The Future Holds

Looking ahead, the future of spectrum analysis in EW and signal intelligence promises even greater levels of sophistication and autonomy. Emerging trends emphasize multi-input, multi-frequency spectrum analysis that can simultaneously monitor diverse signal environments, providing a holistic picture of the electromagnetic battlefield. The integration of artificial intelligence and machine learning is anticipated to automate anomaly detection, signal classification, and threat prioritization, thereby decreasing operator workload and accelerating response times.

Quantum sensing technologies also hold potential for revolutionizing spectrum analysis by enabling ultra-sensitive detection of signals at previously unattainable low power levels and with exceptional spectral purity. Such advancements could provide a transformative edge in EW and SIGINT, uncovering faint transmissions and subtle spectral signatures that evade conventional detection.

In addition, the shift toward software-defined and cloud-based spectrum analysis platforms will enhance collaborative spectrum management among allied forces, allowing secure, real-time sharing of spectral data and improved joint situational awareness. This cooperative spectrum dominance will be critical in future conflicts characterized by multi-national coalition operations and increasingly contested electromagnetic domains.

In sum, spectrum analyzers have transitioned from specialized laboratory instruments to mission-critical assets that serve as the tactical eyes and strategic microscopes of EW and SIGINT. Their role in decoding the invisible electromagnetic battlefield, supporting defensive and offensive operations, and informing intelligence-driven actions ensures they remain indispensable as warfare continues to evolve in complexity and electronic sophistication.
