1 - 22 GHz MMIC 2-Way High Isolation Power Divider/Power Splitter: MPBR-0122CSP3
The MPBR-0122CSP3 is a compact, high-performance MMIC power divider/power splitter that operates across the 1 to 22 GHz frequency range.

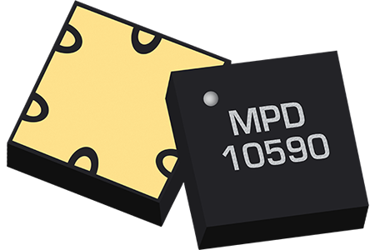

Packaged in a 3.5 mm CSP3 chip-scale format, it offers significant miniaturization compared to traditional PCB-based power dividers and combiners, making it particularly valuable in applications where size, weight, and power (SWaP) are key design constraints.
This device delivers excellent electrical performance with 31 dB isolation and a low 2 dB insertion loss, enabling efficient signal distribution and minimizing loss in demanding RF and microwave systems. It can be configured as either a two-way power splitter with equal amplitude and phase balance, or as a power combiner. Compared to standard Wilkinson power dividers, the MPBR-0122CSP3 offers superior isolation, making it ideal for high-performance systems where leakage between channels must be minimized.
A key strength of the MPBR-0122CSP3 is its precision manufacturing, which ensures tight fabrication tolerances and reduced unit-to-unit performance variation compared to traditional designs. This consistency allows engineers to perform accurate simulations using the provided measured S3P data, streamlining integration and reducing development time.
The device’s extremely small SMT footprint supports next-generation designs in communications, radar, aerospace, and defense applications where compact size and reliability are critical. For customers requiring even higher isolation, the companion MPBR-0022CSP3 provides an alternative option.
By combining broadband coverage, low insertion loss, excellent isolation, and ultra-compact packaging, the MPBR-0122CSP3 offers engineers a reliable, space-saving solution for advanced RF and microwave system designs.
