6-11 GHz Low Noise Amplifier: CMD186P3

Source: Custom MMIC Design Services (CMDS) , Inc.

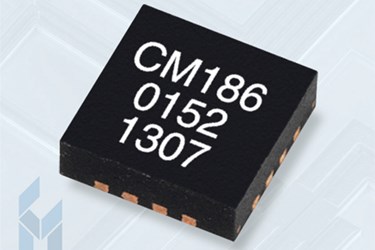

The CMD186P3 is a broadband MMIC low noise amplifier housed in a leadless 3x3 mm plastic surface mount package. The CMD186P3 is ideally suited for EW and communications systems where small size and low power consumption are needed.

The CMD186P3 is a broadband MMIC low noise amplifier housed in a leadless 3x3 mm plastic surface mount package. The CMD186P3 is ideally suited for EW and communications systems where small size and low power consumption are needed. The broadband device delivers 18.5 dB of gain with a corresponding output IP3 of +28 dBm and a noise figure of 2.1 dB. The CMD186P3 is a 50 ohm matched design eliminating the need for external DC blocks and RF port matching. The CMD186P3
amplifier is the perfect alternative to costly hybrid amplifiers.

Features

  • Low noise figure
  • High IP3
  • High gain broadband performance
  • Single supply voltage: +5.0 V @ 78 mA
  • Pb-free RoHs compliant 3x3 QFN package

Applications

  • Point-to-point radios
  • Point-to-multi-point radios
  • Military end-use
  • Test instrumentation
