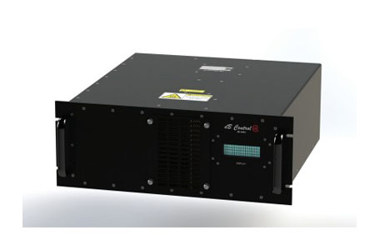

GaN Solid State Power Amplifier: dB-8064
Source: dB Control
The dB-8064 is a GaN Solid State Power Amplifier operating in the frequency range of 32 to 38 GHz providing up to 100 Watts.
The power supply topology uses proprietary low-noise, high-efficiency designs to operate the RF signal path. An embedded micro-controller provides the interface, control and protection functions and status indication for the Amplifier. Standard interface protocol for remote operation is Ethernet. Other protocols such as RS-232, RS-422, RS-485, CANBUS or custom interfaces are available as options. The SSPA is packaged in a 19” rack mount package with a LCD screen display. Cooling of the SSPA is accomplished by integral forced air-cooling arrangement.
