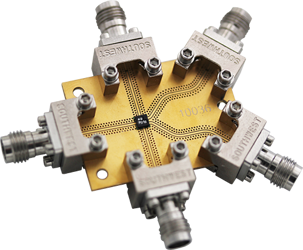

Evaluation Board For Wilkinson Power Divider/Power Splitter: EVB-MPD Series

An RF/microwave power divider/combiner can split an input signal into two identical signals or combine two inputs into a single output. For power combining applications, isolation between input ports is the most important specification. For power splitting applications phase balance, amplitude balance, insertion loss, and return loss are more important. Dividers will typically operate across a broader bandwidth than combiners.

Wilkinson Power Dividers/Combiners feature the lowest insertion loss across broad bandwidths and provide excellent amplitude and phase balance.

Download the available diagrams to learn more.
