Empower RF Announces 1kW X Band Pulsed SSPA For Extending Radar Range

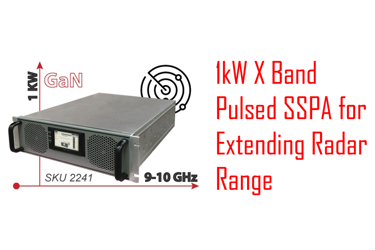

Empower RF announces delivery of the model 2241, a GaN Solid State PA pulse emitter designed for new Radar applications where portability and extended range are key requirements. Across the operating band of 9 to 10GHz, the model 2241 provides over 1000W peak power in a compact 3U chassis.
Flexible waveform handling is a key feature. The 2241 is capable of long pulses, high duty cycles, and a derated long pulse mode. The unit is controlled through the front panel touch screen, M2M SCPI, and peer/Lan connected PC and web browser with no software to install. Production Test Data Available upon request.
Capabilities:
- Up to 20% Duty Cycle
- Up to 500 µsec Pulse Width
- Up to 25kHz PRFs
- Derated Long Pulse Operation 2.2ms @200W
- Pulse Modulated or Gated Pulse Mode
- High VSWR 3:1 and Open/Short Protection
