EMC Amplifiers Catalog

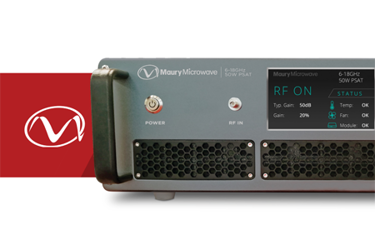

The Maury Microwave EMC Series amplifiers are advanced RF power amplifiers designed for electromagnetic compatibility (EMC) immunity testing across a wide frequency spectrum, from 0.6 GHz to 40 GHz. With output powers ranging from 20 W to 500 W, these amplifiers address the increasing demands of modern test environments, including evolving EMC standards that now require higher frequencies, wide bandwidths, and superior linearity. Each model features robust protective circuits (over-temperature, over-drive, and more), remote control via TCP/IP and RS485, and options for integrated couplers, rear-panel connectors, and RF forward sampling. The amplifiers are fully compatible with various international standards (IEC, CISPR, ISO, IEEE, MIL-STD, etc.), supporting CW and complex modulation formats such as OFDM.

Mechanical designs are optimized for reliability, with extensive burn-in to maximize up-time. Maury offers a courtesy pool of loaner amplifiers and service level agreements for uninterrupted operation during servicing. The company also provides semi-custom and fully custom solutions to meet specific power, gain, or frequency requirements, evaluated on a case-by-case basis.

Key performance highlights include saturated output power (Psat) up to 500 W, high small-signal gain (up to 56 dB), flat gain response, low harmonics and spurious signals (typically −65 dBc), and unconditional stability. Mechanical options and cooling configurations are tailored to power class and application. All amplifiers are covered by a 24-month warranty, with after-sales and technical support. Maury’s customizable, state-of-the-art solutions ensure reliable and standards-compliant EMC testing.
