DC- 26 GHz SPDT MMIC Switch Offers Low Insertion Loss And High Isolation

Custom MMIC, a leading developer of performance driven monolithic microwave integrated circuits (MMICs), has added a new SPDT switch to their rapidly growing standard product portfolio —the CMD230. Its 1.4 dB insertion loss is the company’s lowest yet for an SPDT.

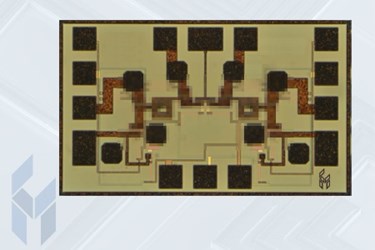

The CMD230 is a general-purpose, broadband, high-isolation reflective MMIC SPDT switch in die form. Covering DC to 26 GHz, it features low insertion loss of 1.4 dB, Input IP3 of 37dBm and high isolation of 40 dB at 13 GHz. The CMD230 operates using complementary control voltage logic lines of 0/-5 V and requires no bias supply.

The CMD230 switch is pin-compatible with the now obsolete CSW0118 from Celeritek. Applications for the CMD230 include microwave radio, test instrumentation, and military radar/EW.

To download the full datasheet on the CMD230 DC-26 GHz SPDT Switch, visit the Custom MMIC Product Library.

About Custom MMIC

Custom MMIC is a leading developer of performance driven monolithic microwave integrated circuits (MMICs). Embracing their customer’s challenges, the company offers both a growing family of high performance MMIC standard products, and innovative custom design services. Their engineering team is highly experienced in a broad range of III-V processes (e.g. GaAs, GaN, InP, InGaP) and have long standing relationships with the leading foundries. Custom MMIC specializes in RF through millimeter-wave circuits serving diverse markets including wireless and wired communications, satellite, radar systems, cellular infrastructure and instrumentation. The company was founded in 2006 and is based in Westford MA. For more information, visit www.custommmic.com.
