New Product Release: CW Immune, Detector Log Video Amplifier, 2 To 18 GHz


PMI Model SDLVA-218-71-70MV is a CW Immune, Extended Range Detection Log Video Amplifier (ERDLVA) which offers 71dB Dynamic Range over the frequency range of 2.0 to 18.0GHz. This model offers a maximum rise time of 35nsec and a recovery time of less than 350nsec. The unit is temperature compensated such that log linearity over temperature remains less than +/-1.5dB over the full operating temperature range of -20 to +85C. This model is supplied in a compact housing measuring only 3.5" x 2.5" x 0.5".
[Optional frequency ranges covering 100MHz to 26.5GHz are available.]

Key Features:

  • 2.0 to 18.0GHz Broadband Frequency Operation
  • TSS -72dBm maximum
  • -66 to +5dBm Logging Range
  • +/-1.5dB Maximum Log Linearity
  • CW Immunity
  • Video Output capable of driving signal through 250' RG11, 75 Ohms cable
  • Designed for use in ESM, ECM, RWR, and SIGINT systems.

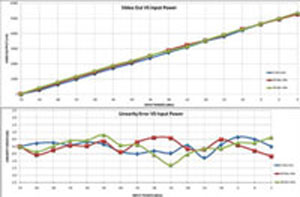

Actual Test Data

Click here to view the full test report.

For additional information please visit our web site listing --> http://www.pmi-rf.com/Products/SDLVA/SDLVA-218-70-70MV.htm

SOURCE: Planar Monolithics Industries
