Crystek Crystals Introduces New SMD True Sinewave Clock Oscillator Featuring High Frequency And Ultra Low Phase Noise Floor Performance

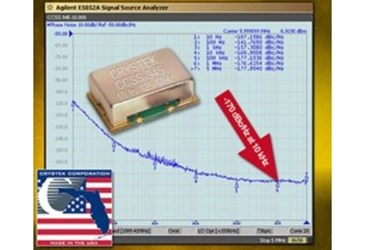

Crystek Crystals Corporation has launched the CCSS-945 – a True SineWave Clock Oscillator (XO) providing -170 dBc/Hz noise floor at 1 MHz offset. The close-in phase noise performance is an industry-leading -105 dBc/Hz typical at 10 Hz offset.
Ft. Myers, FL (PRWEB) - Crystek Crystals Corporation has launched the CCSS-945 – a True SineWave Clock Oscillator (XO)providing -170 dBc/Hz noise floor at 1 MHz offset. The close-in phase noise performance is an industry-leading -105 dBc/Hz typical at 10 Hz offset. This high-performance clock oscillator is available in the industry standard 9x14mm SMD package and is engineered to MIL-STD-883 and MIL-STD-202 specifications.
The CCSS-945 Clock Oscillator generates frequencies between 10 MHz and 125 MHz, with output level of +5 dBm min into 50 Ohms and harmonics lower than -25dBc. The CCSS-945 consumes 30 mA max. current @ 5.0 volts and has no sub-harmonics.
The CCSS-945 is ideal for applications requiring ultra-low noise performance similar to more expensive OCXO crystal oscillators. Extended temperature operating range of -40°C to +85°C and other custom specifications are also available.
For pricing details, contact Crystek Corporation.
Family datasheets are available for download at http://www.crystek.com. For more information, contact sales at Crystek Corporation, 12730 Commonwealth Drive, Ft. Myers, FL 33913. Tel: 800-237-3061 or 239-561-3311; Fax: 239-561-1025; Web: http://www.crystek.com.
Source: PRWeb
View original release here: http://www.prweb.com/releases/2013/12/prweb11418166.htm
