High Power Gallium Nitride (GaN) Amplifier: SSPA 2.0-4.0-100

High Power Gallium Nitride (GaN) Amplifier: SSPA 2.0-4.0-100

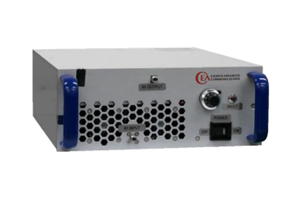

Aethercomm Model Number SSPA 2.0-4.0-100 is a high power, Gallium Nitride (GaN) amplifier that operates from 2000 MHz to 4000 MHz minimum and is packaged in a rugged enclosure. This amplifier is designed for operation in harsh environments. Typical output power is 100 watts across the band at P3dB. Small signal gain is 54 dB ± 3.0 dB across the band typically. Input and output VSWR is 2.0:1 maximum. This unit is equipped with DC switching circuitry that enables and disables the RF devices inside the amplifier in 540 nSec typical for turn on and 230 nSec typical for turn off time. Standard features include reverse polarity protection, output short and open circuit protection, and over/under voltage protection. There is a temperature sensor internal to this amplifier with thermal shut down to protect the unit.
Solid State Broadband High Power RF Amplifiers

Solid State Broadband High Power RF Amplifiers

Ophir RF offers Solid State Broadband High Power RF Amplifiers for EMC, Communications, and Military applications. Links to datasheets can be found below, along with information on typical users of Ophir RF’s amplifiers, and the applications in which they’re used.

20-520 MHz Solid State Broadband High Power Amplifier: BBM2E3KLP (SKU 1163)

20-520 MHz Solid State Broadband High Power Amplifier: BBM2E3KLP (SKU 1163)

In UHF/VHF frequency bands, the BBM2E3KLP (SKU 1163) high power amplifier can be used as a broadband PA building block in electronic attack, digital communications, and test and measurement applications.

High Transmit Power GaN Power Amplifier: TA1003

High Transmit Power GaN Power Amplifier: TA1003

This is a class AB, GaN amplifier module with high linear transmit power with superior EVM performance and greater than 40% efficiency. Its 30 MHz to 3000 MHz frequency range makes it ideal for a wide variety of applications.

High Power Solid State & Traveling Wave Tube Amplifiers

High Power Solid State & Traveling Wave Tube Amplifiers

Teledyne MEC, a sister company of Teledyne Microwave Solutions, introduces the new line of SSHPA (Solid State High Power Amplifier) products. Demanding power and reliability standards required with most modern radars and communication transmitters benefit from these amplifiers advanced thermal management schemes and unique highly efficient coaxial power combiners. The most popular bands of radio frequency are covered with this line, and output power ranges from 100W at the module level to over 1kW at the amplifier level, in hermetically sealed packages operating over - 40°C to + 80°C. Additional features include CW and peak pulse power capability, 0.5dB gain flatness peak-peak, excellent VSWR match of 1:5 over different bands, and more.

High-Power Broadband Gallium Nitride RF Amplifier: SSPA 0.020-6.000-35

High-Power Broadband Gallium Nitride RF Amplifier: SSPA 0.020-6.000-35

Aethercomm Model Number SSPA 0.020-6.000-35 is a high power, super broadband, Gallium Nitride RF amplifier that operates from 20 MHz to 6000 MHz. This PA is ideal for broadband military platforms as well as commercial applications because it is robust and offers high power over a multi-decade bandwidth with decent power added efficiency. This is an industry first for bandwidth, power and efficiency in a package like this. This amplifier operates from a base plate temperature -40°C to +75°C for maximum performance. It is packaged in a modular housing that is 7.65(w)” by 2.5(l)” by 1.27(h)”. This amplifier has a typical P3dB between 35 to 50 watts at room temperature.
Broadband High Power RF Amplifier: 20 MHz to 1000 MHz

Broadband High Power RF Amplifier: 20 MHz to 1000 MHz

Ophir RF’s 6010 broadband high power RF amplifier is ideal for NMR applications. It operates in the 20 to 1000 MHz frequency range and has a saturated output power of 125 Watts (min). It also has +52 dB (min) small signal gain, 50dB (min) blanking, <5uS blanking speed, -20 dBc (typ) harmonics @90 Watts, >-60 dBc (typ) @90 Watts, and much more. Additional specifications can be found on the available datasheet.

GaN MMIC Power Amplifiers

GaN MMIC Power Amplifiers

These GaN MMIC power amplifiers are ideal for applications involving test instrumentation, general communications, and general radar. Two models are featured below, a 25 Watt PA covering the 2-6 GHz frequency range, and an 8 Watt PA covering the 2-20 GHz frequency range.
