RF Surface Mount Inductors With Established Reliability Ratings

Source: Gowanda Electronics & TTE Filters

RF Surface Mount Inductors With Established Reliability Ratings

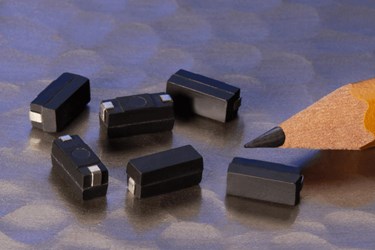

Gowanda Electronics is proud to introduce the Gowanda ER3013 series; the industry’s first off-the-shelf RF Surface Mount (SMT) Inductors with established reliability (ER) rating. This series is designed to enable faster assembly processing and reduce the cost of high-reliability electronic systems where ER components are utilized, making designs attainable for even the most challenging high-reliability components.

Contact The Supplier

The Gowanda ER3013 inductors are wirewound, molded, meet the military’s Qualified Products List (QPL) requirements for Established Reliability to failure rate level M, and address three MIL-PRF-39010 slash numbers (/19, /20 and /21). Featured performance ranges include inductance from 0.10 to 1000 µH, Q (min) from 25 to 55, SRF MHz (min) from 3.4 to 680, DCR Ohms (max) from 0.08 to 72, and current rating mA DC from 28 to 1380.

Performance Ranges for Gowanda’s MIL-PRF-39010 Level M Established Reliability Surface Mount Series:

Gowanda
Series

Military Slash Numbers

L  µH

Q Min

SRF MHz Min

DCR Ohms
Max

Current Rating mA DC

ER3013

M39010/19

M39010/20

M39010/21

0.10 – 1.0

1.1 - 27

30 - 1000

25 - 40

25 - 55

30 - 45

230 - 680

20 - 150

3.4 - 24

0.08 – 1.0

0.18 – 3.5

3.4 - 72

390 - 1380

140 - 620

28 - 130


Contact Gowanda Electronics or download the datasheet for more features on the ER3013 series and information regarding pricing, delivery, higher reliability, or up-screening requirements.
