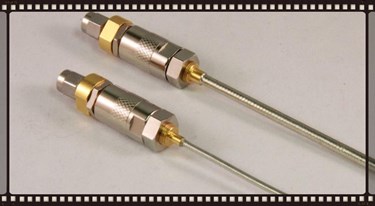

The Next Generation Of The Phase Adjustable Connectors 3993-2 RG402 (0.141) And 3993-3 RG405 (0.085).

There has never been a faster or easier way to phase match a set of cables. With the newly released high-performance 3993-2 & 3993-3, Coaxicom has enhanced the direct solder versions of the phase adjustable connectors for superior electrical performance. Just trim the cable, plug it in and solder to the connector body.

The Coaxicom 3993 series of Phase Adjusters are designed to deliver a means of phase adjustment over frequency ranges up to 18 GHz. The 3993 SMA Phase Adjustable connectors have an adjustment range of over 180 degrees and a maximum VSWR of 1.30:1. The 3993 is a phase adjustable SMA plug (male) direct solder connector. The 3993-2 is for RG402 (0.141" semi-rigid) and the 3993-3 is for RG405 (0.085 semi-rigid). Both can also be used with Coaxicom's ultra-flex and blue-flex cables. The 3993-2 & 3993-3 are available from stock.

Coaxicom specializes in the manufacture of RF connectors, attenuators, terminations, adapters, torque wrenches, phase adjusters and cable assemblies. For more information, visit www.Coaxicom.
