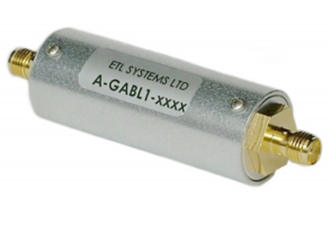

L-Band Fixed-Gain Amplifiers: A-GABL1-33XX
Source: ETL Systems Ltd.
ETL Systems offers a series of fixed-gain tubular amplifiers with 10, 15, 20, 25 or 30 dB gain that operate in the L-band (850-2150 MHz). These amplifiers are available in DC pass biased from either RF port, DC block biased from output port, 10 MHz and DC pass biased from either RF port, DC blocked biased from input port, 10 MHz and DC block biased from output port, or 10 MHz and DC block from input port. Typical field applications for these devices include telecom infrastructures, satellite systems, microwave links, test and instrumentation, military communications, and radar networks.
For more information on the different specifications and RF parameters, download the available datasheets.
| Gain Level |
DC pass biased from either RF port |
DC block biased from output port |
10 MHz and DC pass biased from either RF port |
DC blocked biased from input port |
10 MHz and DC block biased from output port |
10 MHz and DC block from input port |
| 10 | A-GABL1-3331 | A-GABL1-3336 | A-GABL1-3341 | A-GABL1-3347 | A-GABL1-3352 | A-GABL1-3357 |
| 15 | A-GABL1-3332 | A-GABL1-3337 | A-GABL1-3342 | A-GABL1-3348 | A-GABL1-3353 | A-GABL1-3358 |
| 20 | A-GABL1-3333 | A-GABL1-3338 | A-GABL1-3343 | A-GABL1-3349 | A-GABL1-3354 | A-GABL1-3359 |
| 25 | A-GABL1-3334 | A-GABL1-3339 | A-GABL1-3344 | A-GABL1-3350 | A-GABL1-3355 | A-GABL1-3360 |
| 30 | A-GABL1-3335 | A-GABL1-3340 | A-GABL1-3345 | A-GABL1-3351 | A-GABL1-3356 | A-GABL1-3361 |
