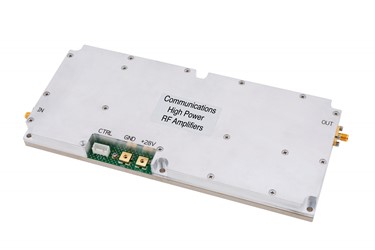

High Power RF Amplifiers For Communications Applications
Source: Quantic Corry
Corry Micronics offers a series of high power RF amplifiers operating in frequencies ranging from 869 GHz to 2170 GHz, and with nominal output power of 32 W or 45 W. Signal types include GSM, LTE, and UMTS models. Control and monitoring features are available.
Key features include:
- Amplifier efficiencies of 40%
- Built-in circulator RF output protection
- RF output power levels to 250 watts
- Unmatched flatness, linearity and gain
- Several control and monitoring
- Automatic level control but can be turned to manual if desired
- Mute function
- Temperature monitoring with alarm protection
- Forward and reflected RF output power
- VSWR over current shutdown
Typical applications:
- Broadband Jamming
- Electronic warfare
- Pulsed radar
- Military and cell communications
- RF transmitters
- Test equipment
- Counter IED systems
Click the model numbers in the table below to download each datasheet for more information.
| Part Number | Signal Type |
Frequency Min (GHZ) |
Frequency Max (GHZ) |
Nominal Output Power (W) |
Gain, Nominal (dB) |
Control and Monitoring Features |
|
GSM |
935 |
960 |
32 |
33 |
Yes, refer to data sheet |
|
|
GSM |
1805 |
1880 |
32 |
33 |
Yes, refer to data sheet |
|
|
LTE |
869 |
894 |
45 |
51 |
Yes, refer to data sheet |
|
|
LTE |
1805 |
1880 |
45 |
51 |
Yes, refer to data sheet |
|
|
UMTS |
935 |
960 |
45 |
44 |
Yes, refer to data sheet |
|
|
UMTS |
2110 |
2170 |
45 |
44 |
Yes, refer to data sheet |
