Application Note

Basic RF Amplifier Measurements Using The R&S® ZNB Vector Network Analyzer And "SMARTerCal"

By Rohde & Schwarz GmbH & Co. KG

Basic RF Amplifier Measurements Using The R&S® ZNB Vector Network Analyzer And “SMARTerCal”

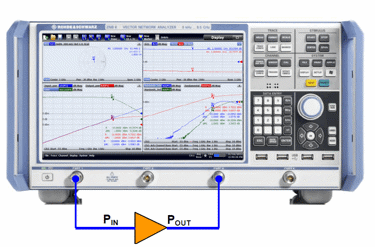

Rohde & Schwarz’s family of ZNB vector network analyzers (VNAs) are ideal for analyzing an RF amplifier’s small signal linear and nonlinear performance. This application note demonstrates how to configure and use the R&S® ZNB vector network analyzer to successfully make accurate and quick measurement of basic RF amplifier parameters. It also discusses how to use the “SMARTerCal” calibration tool to combine systematic error correction with calibrated receiver power for enhanced measurement accuracy. Download the full application note for more information.
