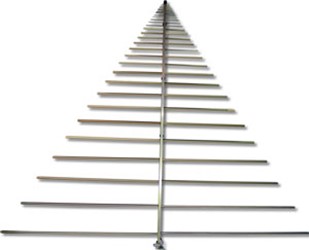

SAS-517 Log Periodic Antenna
Source: A.H. Systems
The A.H. Systems' SAS-517 Log Periodic Antenna is lightweight, compact and has been manufactured to ensure maximum gain and low VSWR. Whether testing inside a shielded enclosure or outdoors, this antenna will display efficient performance characteristics through the frequency range of 80 MHz to 4000 MHz.
Request Information
Next-day, On-time delivery.
Frequency Range: 80 MHz - 4000 MHz
Maximum Continuous Power: 1000 Watts
Impedance: 50 Ω
Max Radiated Field: 200 V/m
Connector: N-Type, female
Mounting Base: ¼ - 20 Thread, female
Physical Dimensions:
Length: 56.6 in. (143.8 cm)
Width: 72.3 in. (183.6 cm)
Weight: 4.6 lb.'s (2.09 kg)
Features
- Frequency Range of 80 MHz to 4000 MHz
- Receive and Transmit
- Individually Calibrated (1, 3 and 10 Meter calibration included, horizontal polarization)
- FCC, MIL-STD, VDE and TEMPEST Testing
- Rugged Construction
- Supplied with LPM-510 mounting adapter
The A.H. Systems' SAS-517 Log Periodic Antenna is lightweight, compact and has been manufactured to ensure maximum gain and low VSWR. Whether testing inside a shielded enclosure or outdoors, this antenna will display efficient performance characteristics through the frequency range of 80 MHz to 4000 MHz.
